ETCR6000 AC/DC Clamp Leaker
Color page: User's manual: CE certificate:
ETCR6000 AC/DC Clamp Leaker ETCR

Measurement of AC/DC current, leakage current, Current range: DC/AC 0mA-60.0A, Resolution: 1mA, Clamp size: Φ7mm, the small clamp is suitable for line densely places. Data storage: 99 sets, with RS232 interface.

ETCR6000 AC/DC Clamp Leaker
产品产商:
会员价格:0.00
服务:售前咨询电话:400-880-5151
如果您对该产品感兴趣的话,可以
ETCR6000 AC/DC Clamp Leaker
I  Introduction

ETCR6000 AC/DC Clamp Leaker is specially designed for measurement of AC/DC current; by adopting up-to-date CT technology and digital integration technology. The small clamp is suitable for line densely places (electric power measurement system, the high speed rail system, car circuit overhaul, and so on), non-contact measurement, to ensure safe operation. It is a product with relatively small size, high accuracy and perfect function compared with similar leakers in the world. The leaker could be widely applied in those fields as electricity, communications, meteorology, railroad, oilfield, construction, measurement, scientific & research teaching institutes, industrial and mining establishments. it is an essential tool for electrician safety testing.
ETCR6000 AC/DC Clamp Leaker also named: DC Leakage Current Clamp Meter, Car DC Leakage Current Clamp Meter, AC/DC Clamp Leakage Current Tester. It has those functions as data holding and data storage. It obtains one RS232 interface, communication cable and software, through which historical data inquiry is available, for data reading, exporting and printing.

Ⅱ Technical Specifications

 Function
 Measurement of AC/DC current, leakage current
 Power Supply
 6F22,9V
 Test Mode
 Clip-on CT, integral mode
 Clamp Size
 Φ7mm
 Measurement Range
 0mA-60.0A AC/DC
 Resolution
 1mA AC/DC
 Accuracy
 ±2%rdg±5dgt (23℃±5℃, below 75%rh)
 Display Mode
 Four digits LCD display
 Dimension
 LWH: 168mm×65mm×34mm
 LCD Dimension
 35mm×21.5mm; display domain: 32mm×15mm
 Sampling Rate
 2 times/s
 Frequency
 AC: 45Hz-400Hz
 Polarity Indication
 DC current auto identified and display“
 Test Position
 Tested wire in the jaw center
 Range Shift
 Automatically
 Line Voltage
 AC600V
 RS232 Interface
 Data stored in the memory of the meter via RS232 upload to PC
 Com-Configure
 Baud rate:9600, data bit:8, stop bit:1
 Data Memory
 99units, FULL blinks when the memory is full
 Reading Hold
 DH indicating the reading is hold
 Out of Range
 OL indicating the current is out of range
 Auto Power-off
 5 Minutes after power on, it will power off automatically to lower the power consumption
 Battery Voltage
 Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed
 Weight
 180g (including the battery)
 Working Current
 10mA
 Consumption
 10mW
 Working Temperature and Humidity
 -10℃-50℃,below 80%rh
 Limit Temperature Error
 -10℃-0℃ and 40℃-50℃, within 2%rdg
 Storage Temperature and Humidity
 -10℃-60℃,below 70%rh
 Insulating Strength
 AC2kV/rms (between the alloy of the clamp and the housing)
 Applicable safety rules
 IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)

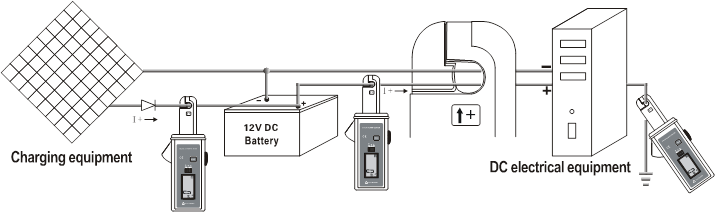

Ⅲ Field Application
ETCR6000 AC/DC Clamp Leakage Current Meter
